- Equipped with original Intel X540 controller chip which supports Intelligent Offloads and make the servers more stable.
- Compatible with Windows Server 2003/ 2008/ 2012, Windows7/8/10*/Visa, Linux, ESX/ESXi*. Storage over Ethernet: iSCSI, FCoE, NFS. (Note that this card can be used with Windows 11, but it needs to be manually set up. If you buy it for Windows 11, please contact us for installation guide before using.)

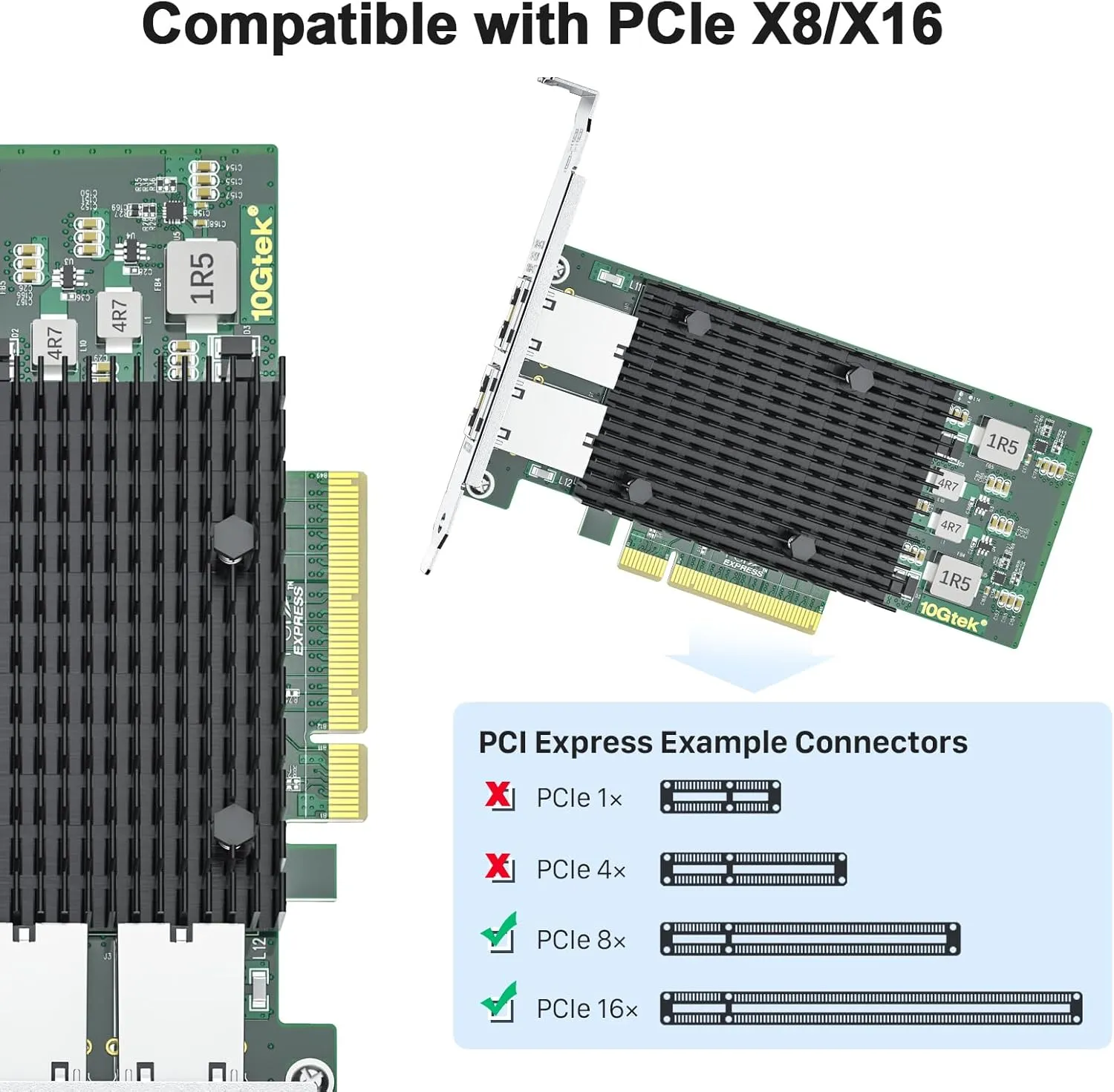

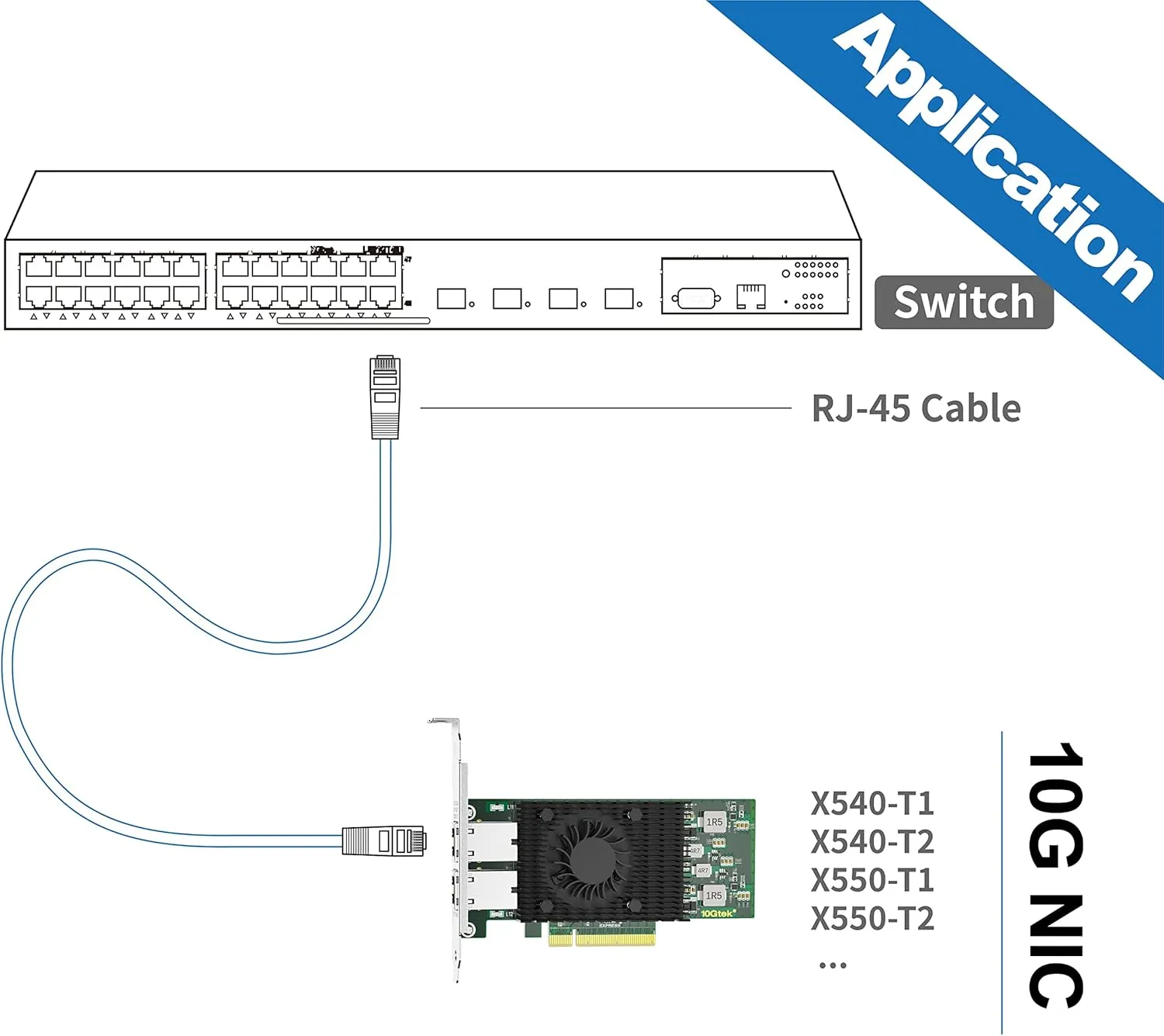

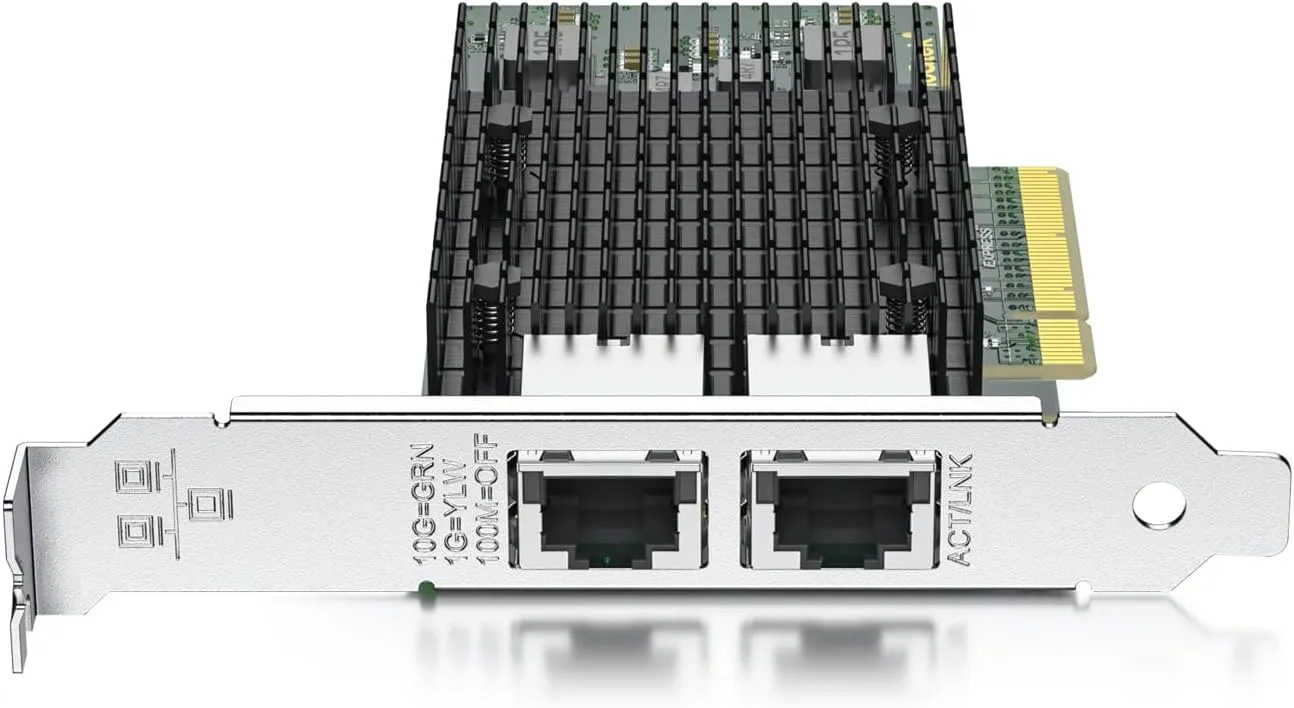

- Dual copper RJ45 ports let you connect to Category-6A and up to 100m((Category-6 up to 55 m) for meeting the demands of data center environments. PCI Express* 2.1. 5.0 G T/s X8 Lane is suitable for both PCI-E X8 and PCI-E X16 slots.

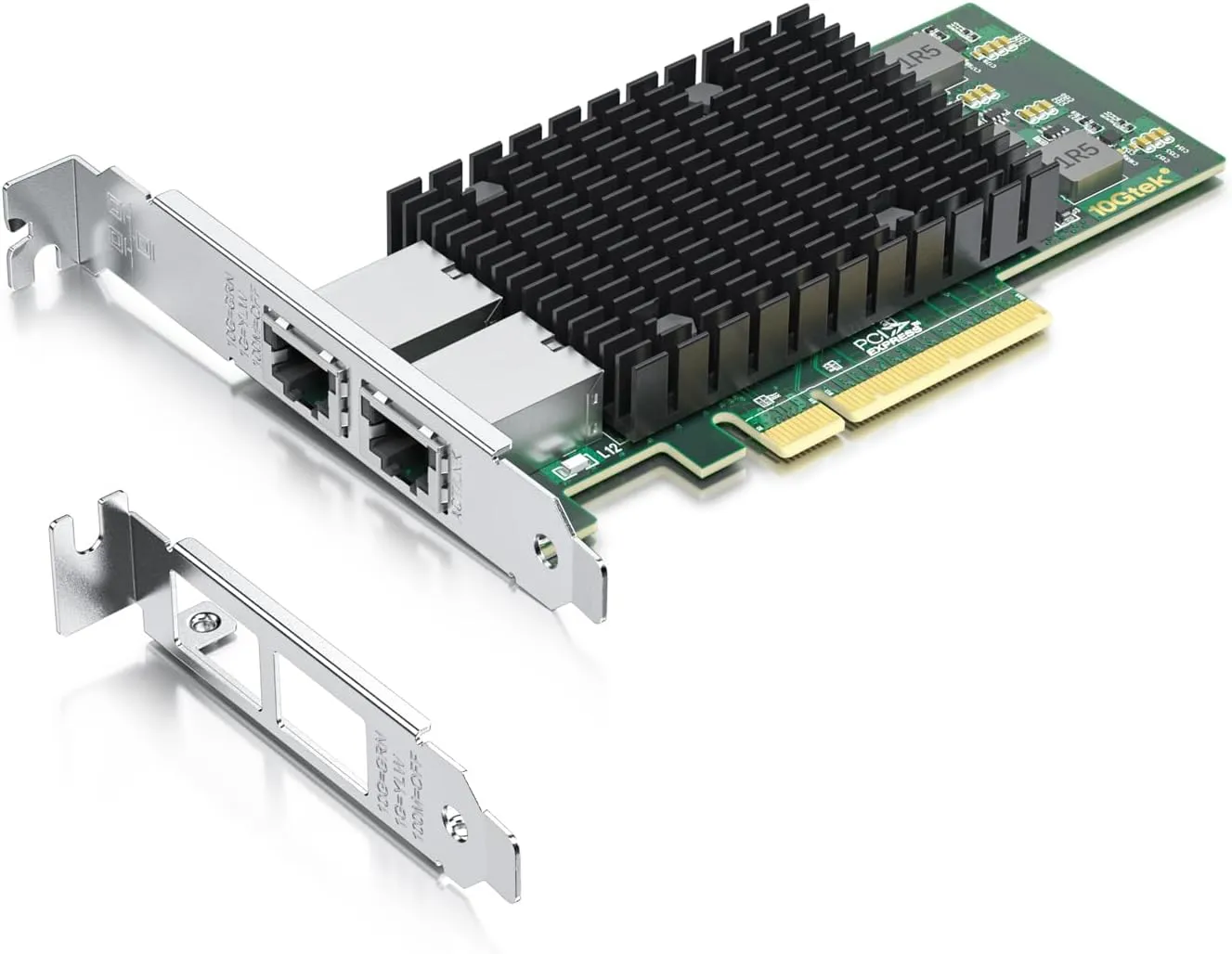

- With profile bracket and additional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.NOT support hot swaping.
- What You Get: 10Gtek 10GbE PCI-E X8 Network Card X540-10G-2T (compare to Intel X540-T2) x1, Low-profile Bracket x1. Backed by 10Gtek 30 Days Free-returned, 3 Year Free Warranty and Lifetime Technology Support.
Networking:
10 GbE/1 GbE/100 Mb/s copper PHYs integrated on-chip
Support for jumbo frames of up to 15.5 KB
802.1q VLAN support
Support for Data Center Bridging(DCB);(802.1Qaz,802.1Qbb,802.1p)
Host Interface:
PCIe base specification 2.1 (2.5GT/s or 5GT/s)
Bus width -x1, x2, x4, x8
64-bit address support for systems using more than 4 GB of physical memory
Temp. Range(℃):0~55
