- 【Wide Compatibility】This mini servo motor is Designed for 1/18 and 1/16 RC cars, model boats, airplanes, and robots. It serves as an ideal upgrade part, enhancing the performance of various remote-controlled models.
- 【80° Max Control Angle】 17G micro servo Capable of reaching a maximum control angle of approximately 180° within the 500 - 2500 μsec pulse width range. This wide angle provides greater flexibility and maneuverability for your models.
- 【Digital Control System】Equipped with a digital controller, the Digital servo offers precise control. It adjusts the pulse width to ensure accurate positioning, with a pulse signal dead zone of ≤ 5 μsec, resulting in smooth and reliable operation.
- 【Optimal Performance Parameters】Under different voltages, rc steering servo shows excellent electrical characteristics. At 4.8V, the no-load speed is 0.12±0.01 sec/60, and the no-load current is ≤130mA. At 6V, the no-load speed is 0.10±0.01 sec/60, and the no-load current is ≤140mA. The stall torque is ≥1.8kg·cm at 4.8V and ≥2.3kg·cm at 6V, ensuring sufficient power for model operation.
- 【Compact and Lightweight Design】Weighing only 16±1g and with dimensions of 28.2*13.2*26.7mm, micro servo is compact and lightweight. The 300±5mm long PH2.0 OD1.2 30C PVC wire is convenient for installation, and the one-word single rocker arm with 46T specification is suitable for different model structures.
Product Description:
1.Apply Environmental Conditon
Storage Temperature Range -20℃〜60 ℃
Operating Temperature Range -10℃〜50℃
2. Mechanical Specification
2.1 Size:1.11*0.52*1.05 inch ( 28.2*13.2*26.7mm)
2.2 Weight 16± 1 g
2.3 Gear type : Plastic
2.4 Limit angle :36 0°
2.5 Control angle :180°
2.6 Horn gear spline :46T
2.7 Horn type :Plastic
2.8 Case :Engineering plastics(PBT)
2.9 Connector wire :300 ± 5 mm
3. Electrical Specification
3.1 Operat voltage:4.8V / 6.0V
3.2 No load speed: 0.12± 0.01sec /60° (4.8V); 0.10± 0.01sec /60°(6V)
3.3 No-load current: ≤130mA (4.8V); ≤140mA(6V)
3.4 Peak stall torque: ≧1.8kg·cm (4.8V); ≧2.3kg·cm(6V)
3.5 Stop current: ≤950mA (4.8V); ≤1800mA(6V)
3.6 Standby current: ≤1mA (4.8V); ≤11mA(6V)

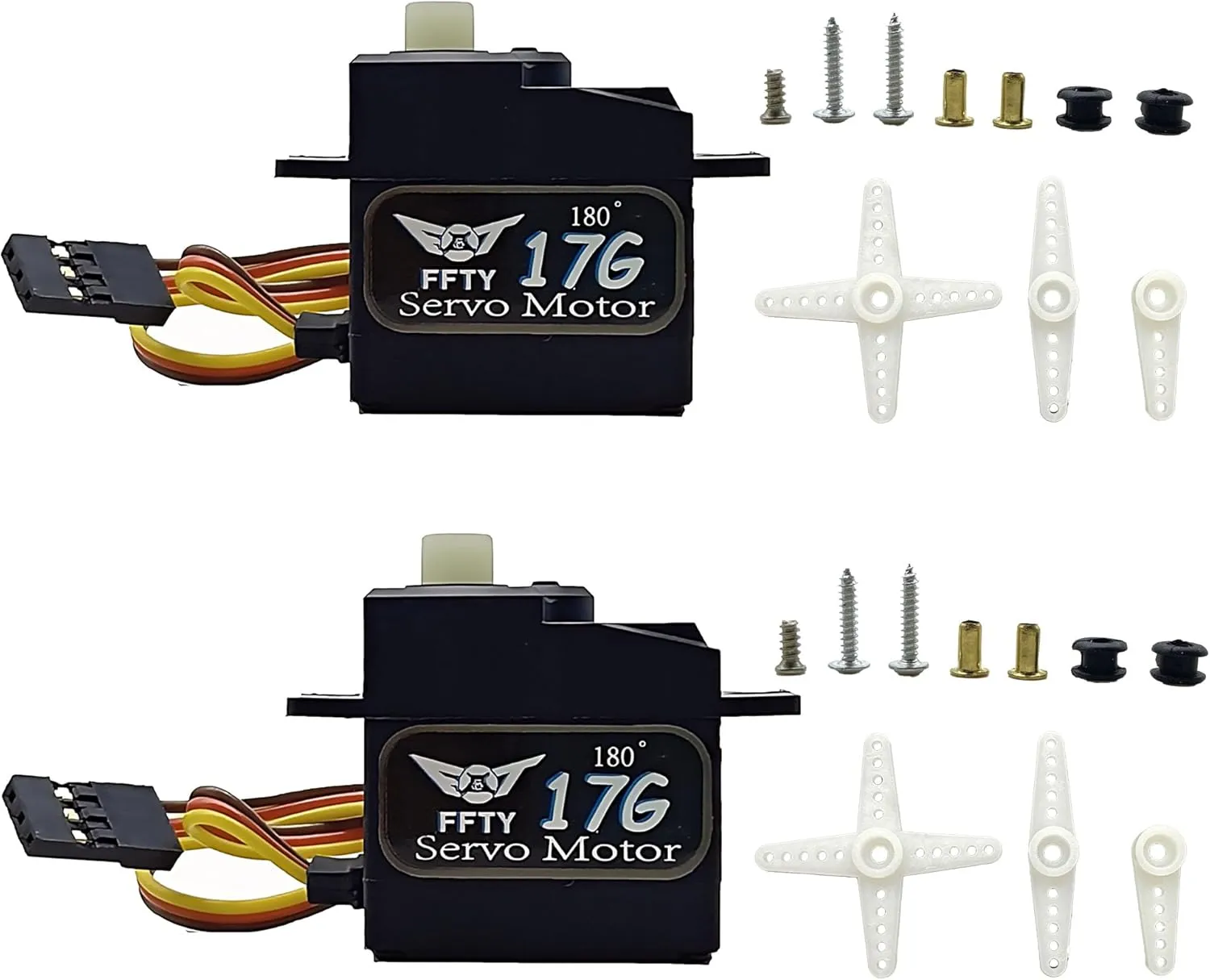

Package List:
17g Servo*2
Accessory Pack*2
