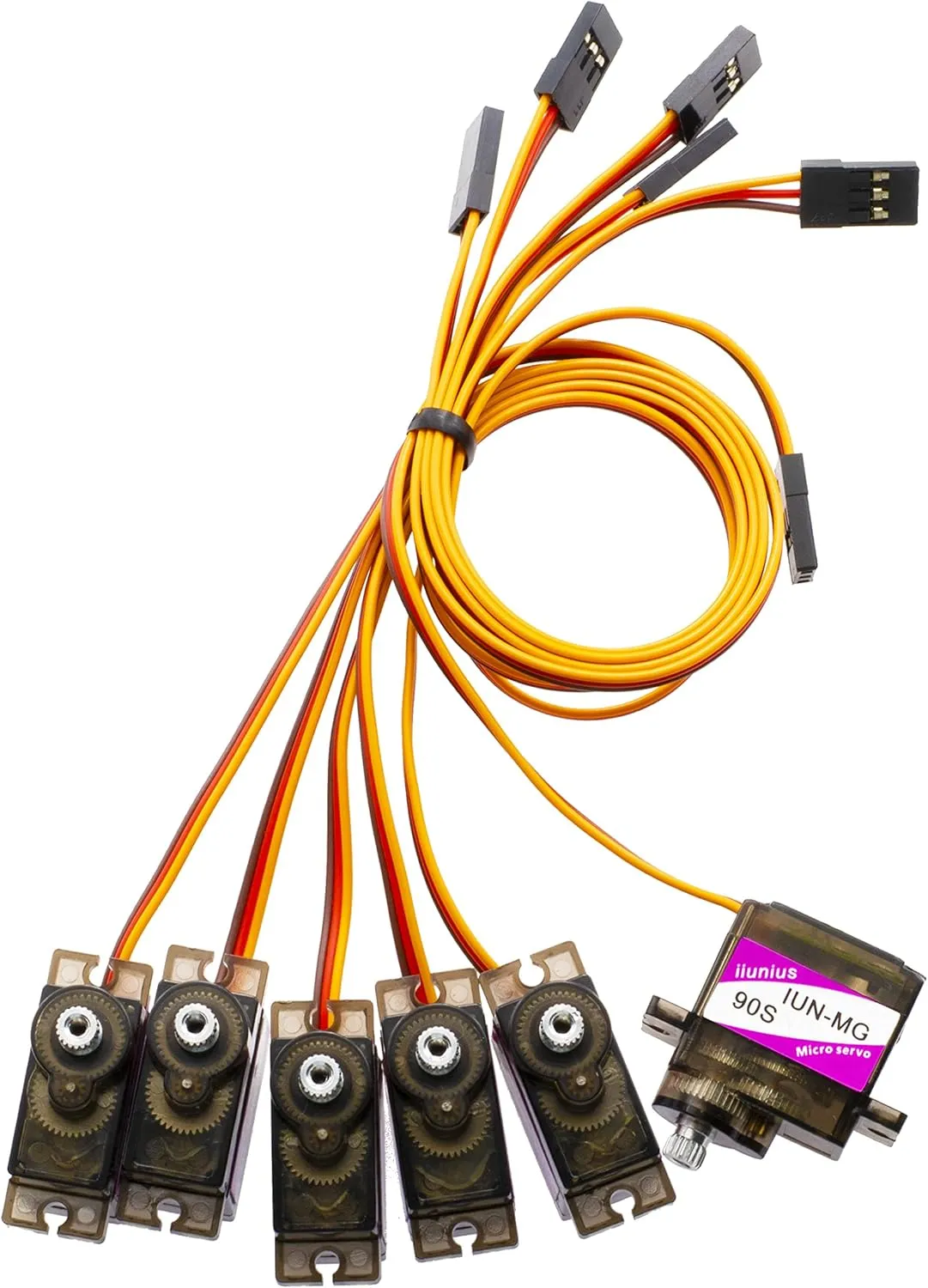

- Metal Servo motor with higher torque and quality. Angel: 180°
- Application Fields: remote control helicopters, micro robot, diving equipment, racing model,all kinds of R/C Toys etc
- Dimensions : 22.9 x 12.2 x 28.5 mm; Weight: 12g
- Stall Torque (4.8v): 1.5±0.01kg·cm.Dead band width: ≤3 usec
- Operating voltage: 4.8V~6.0V
Apply Environmental Condition
1.Storage Temperature Range: -20℃～60℃
2.Operating Temperature Range: -10℃～50℃
3.Operating Voltage Range: 4.8V～6.0
Appearance Inspection
Dimensions:Please refer to the image 7.
Electrical Specification (Function of the Performance)
Operating speed (at no load) 0.12±0.01 sec/60 (4.8V ) 0.11±0.01 sec/60(6V)
Running current (at no load) 220±20mA (4.8V ) 250±20mA(6V)
Stall torque (at locked) 1.5±0.01kg·cm (4.8V ) 1.8±0.1kg·cm(6V)
Stall current (at locked) 700ma±50mA (4.8V ) 900mma±50mA(6v)
Idle current (at stopped) 4±1mA (4.8V ) 4±1mA(6v)
Control Specification
Control system: Change the pulse width
Amplifier type: Analog controller
Operating trave:90°±5°(1000→2000 μsec)
Left&Right travelling Angle deviation:≤3°
Centering deviation:≤ 1°
Neutral position:1500 μsec
Dead band width: ≤3μsec
Rotating direction:Counter Clockwise (1500→800μsec)
Pulse width range:800→2200 μsec
Maximum travel:About 145°(800→2200 μsec)
