- Connect up to 128 SATA or SAS drives with four internal 12Gb/s SATA and SAS ports
- Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Support critical, high-bandwidth applications with PCIe 3.0 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with optional CacheVault flash cache protection

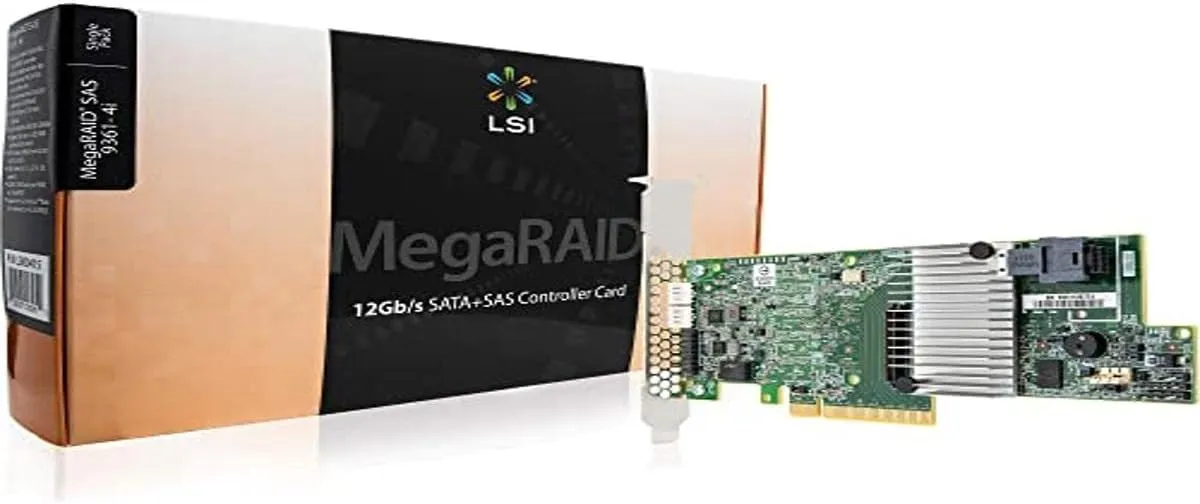

LSI MegaRAID SAS 9361-4i LSI00415 RAID Controller Card
Ensure Data Protection for Performance-Hungry Applications in Mid-Range Server Storage Environments
Data-center, cloud and high-performance computing environments not only require large amounts of storage capacity, they must also provide the data protection and performance today’s applications and end users demand. The MegaRAID SAS 9361-4i 12Gb/s SAS and SATA RAID controller card addresses those needs by delivering proven performance and RAID data protection for a range of server storage applications.
Specifications
RAID-on-Chip Controller LSISAS3108 dual core RAID on Chip (ROC)
Generation 12 Gb/s
RAID Management Software LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure)
Physical Dimensions 6.6" x 2.536" (Low-Profile)
Host Bus Type x8 lane PCI Express 3.0
Cache Memory 1GB 1866MHz DDRIII SDRAM
Internal Ports 4
Data Transfer Rates Up to 12Gb/s per port
Devices Supported Up to 128 SAS and/or SATA hard drives and SSDs
Internal Connectors 1 HD Mini-SAS SFF8643 (Horizontal mount)
MTBF 1,343,187 hours
Operating Temperature Maximum ambient: Controller Card with included CacheVault module: 55°C
Operating Voltage (V) 3.3V, 12V
