- 3 x 12Gb/s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644) for each controller
- Supports 16 x 3.5-inch SAS 12Gb/s, SAS/SATA 6Gb/s Drives
- Flexibly and economically expand the storage space of a dual-controller QNAP NAS for petabyte-level storage capacity
- Dual path mini-SAS design with a redundant power supply for enhanced system reliability
- QNAP dual-controller NAS can detect JBOD connections, and enter missing mode protection to prevent data corruption
- Windows servers can individually connect to a TL-R1620Sdc and be configured into a S2D (Storage Space Direct) failover cluster
- The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. Rail kit (RAIL-B02) sold separately

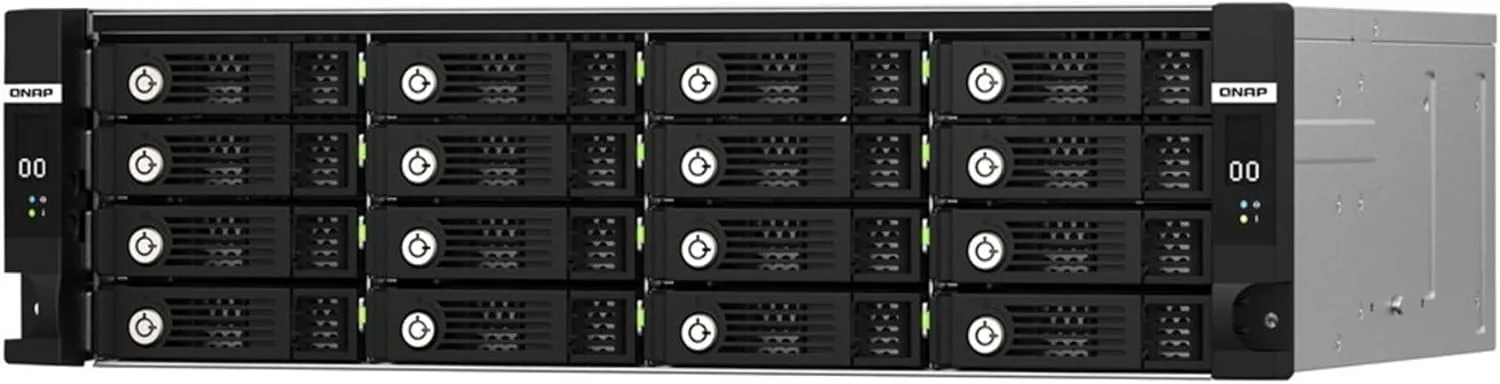

Featuring dual controllers, an OLED indicator, and a short-depth rackmount design, the 3U 16-bay TL-R1620Sdc SAS 12Gb/s storage expansion enclosure is ideal for expanding the storage capacity of dual-controller QNAP NAS. Both controllers have three Mini-SAS HD (SFF-8644) ports, supporting 12Gbps SAS and Broadcom® SAS DataBolt™ bandwidth optimization technology. The dual path mini-SAS design sustains continuous operations even if an external JBOD cable is disconnected. Up to 7 TL-R1620Sdc units can be daisy-chained via high-speed Mini-SAS HD cables, providing scalability and high reliability for mission-critical storage of file servers, virtualization, surveillance, medium-sized data center, multimedia, and more.
