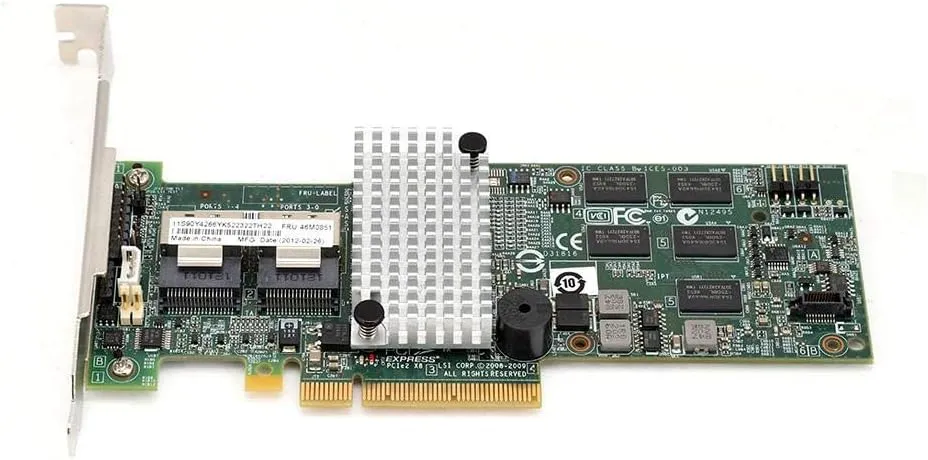

- This PCIE SATA/SAS array card is equipped with 8 interfaces, supports simultaneous connection of 8 SATA hard drives
- Supporting 3Gb/s and 6Gb/s SATA and SAS hard disk drives to maximize the flexibility of connection within the framework
- PCI-E 2.0 can provide faster for high bandwidth applications. Support hot swap, support global hot backup
- Up to 32 SAS/SATA hard drives and SSDs can be connected. Low cross-section MD2 package is ideal for 1U and 2U environments with limited space
- Support automatic recovery during reconstruction, online capacity expansion and RAID level upgrade. Fast and stable connection, and easy to use
Specification:
Eight internal 6 Gbps SAS ,SATA ports
Optional two mini SAS internal connectors (SFF 8087)
6 Gbps throughput per port
800 MHz processor with LSI SAS2108 6 Gbps RAID on Chip (ROC) controller
x8 PCI E 2.0 host interface
Onboard data cache (DDR2 running at 800 MHz): ServeRAID M5015: 512 MB
Battery Backup Unit BBU08 Live Failure Indicator
Connects to up to 32 SAS or SATA drives
RAID Levels: 0 , 1 , 5
RAID Extension: 10 , 50
Automatic recovery during reconstruction
Automatic Recovery during Reconstruction
Online Capacity Expansion (OCE)
Online RAID Level Upgrade (RLM)
Global and Special Hot Spare Parts with Recoverable Hot Spare Parts Support Function
Automatic Reconstruction
Container Affinity
Emergency SATA Hot Spare Parts for SAS Array
Unified Controller Multipath (Failover)
I ,O Load Balancing
Comprehensive and comprehensive RAID Management Suite
LSI 6Gb ,s storage adapter is compatible with existing 3Gb ,s SATA and SASDHDD
Spread Spectrum Clocking , SSC , Decision Feedback Equalization , DFE , Expander Self Discovery , Self Configuration , Standardized Zoning.
Package list:
1 * M5015 Array Card
Note:
1. ServeRAID M5015 46M0829 46M0851 will be sent randomly.
2. This product was removed from Server , not a whole new product , no retail package.
