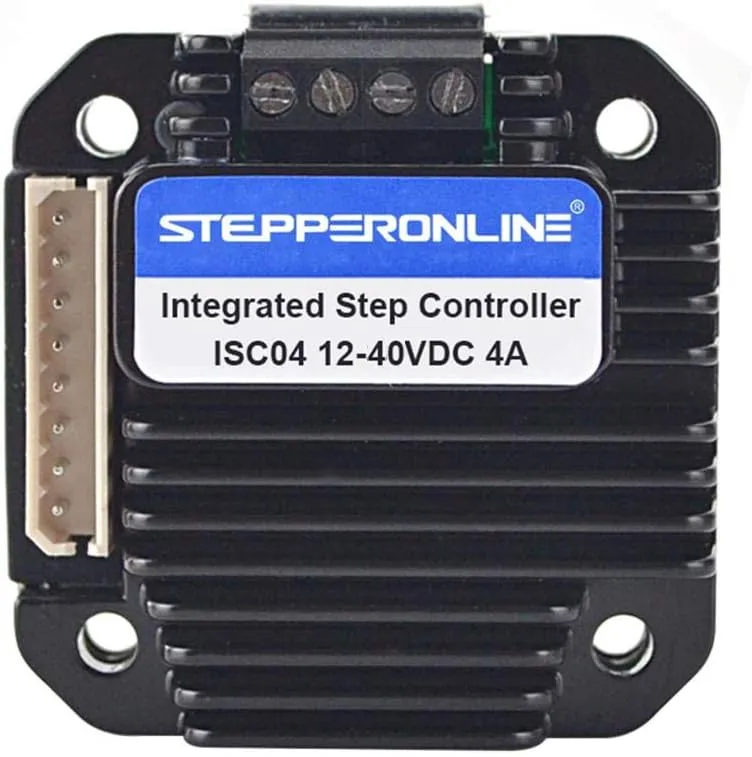

- The ISC04 is a microprocessor embedded, voltage control, miniature stepper motor controller.
- ISC04 can provide 1.5 - 4A adjustable phase current through 12 - 40VDC input voltage.
- The microprocessor of the ISC04 is capable to ramp up the current speed to the desired speed. It is possible to jump to 1250 rpm in 0.3 seconds.
- With the ISC04, the motor speed can be controlled by an analog voltage in two optional ways: an external potentiometer or an external voltage.
- ISC04 can be mounted onto NEMA 17, 23, 24 series stepper motor seamlessly through adapting flanges.
Key Features:
- Miniature size 42.3 x 42.3 x 16.5 mm
- Integrally designed to fit onto motors seamlessly, as well as work standalone
- All-aluminum precision cast housing, sturdy and durable, good heat dissipation
- Wide range input voltage
- 0 - 4 A adjustable output current
- microstep resolutions 1600
- Dual full H-bridge with PWM constant current control
- Self pulse generation, automatic run on power-up
- Speed control through external potentiometer 0.75 - 1250 RPM
- Speed control through 0 - 5V voltage input 0.75 - 1250 RPM
- 0.3 seconds acceleration period
- Switch control run/stop, direction, enable/shutdown
- Automatic current reduction / power saving
- Output Peak Current: 0 - 4 A
- Input Voltage: 12 - 40 VDC
- Speed Range: 40HZ - 67 KHz, 0.75-1256RPM (for 1.8deg Motor)
- Isolation Resistance: More than 100 MΩ
- Dielectric strength: 500VAC for 1MIN.
- Cooling: Natural Cooling
- Environment: Avoid dust, oil fog and corrosive gases
- Humidity: Less than 80% RH
- Operating Temperature: -40℃ - 85℃
- Vibration: 3G Max
- Storage Temperature: -50℃ - 150℃
- Size: 42.3 x 42.3 x 16.5 mm
- Weight: 54.6 g(1.926oz)
