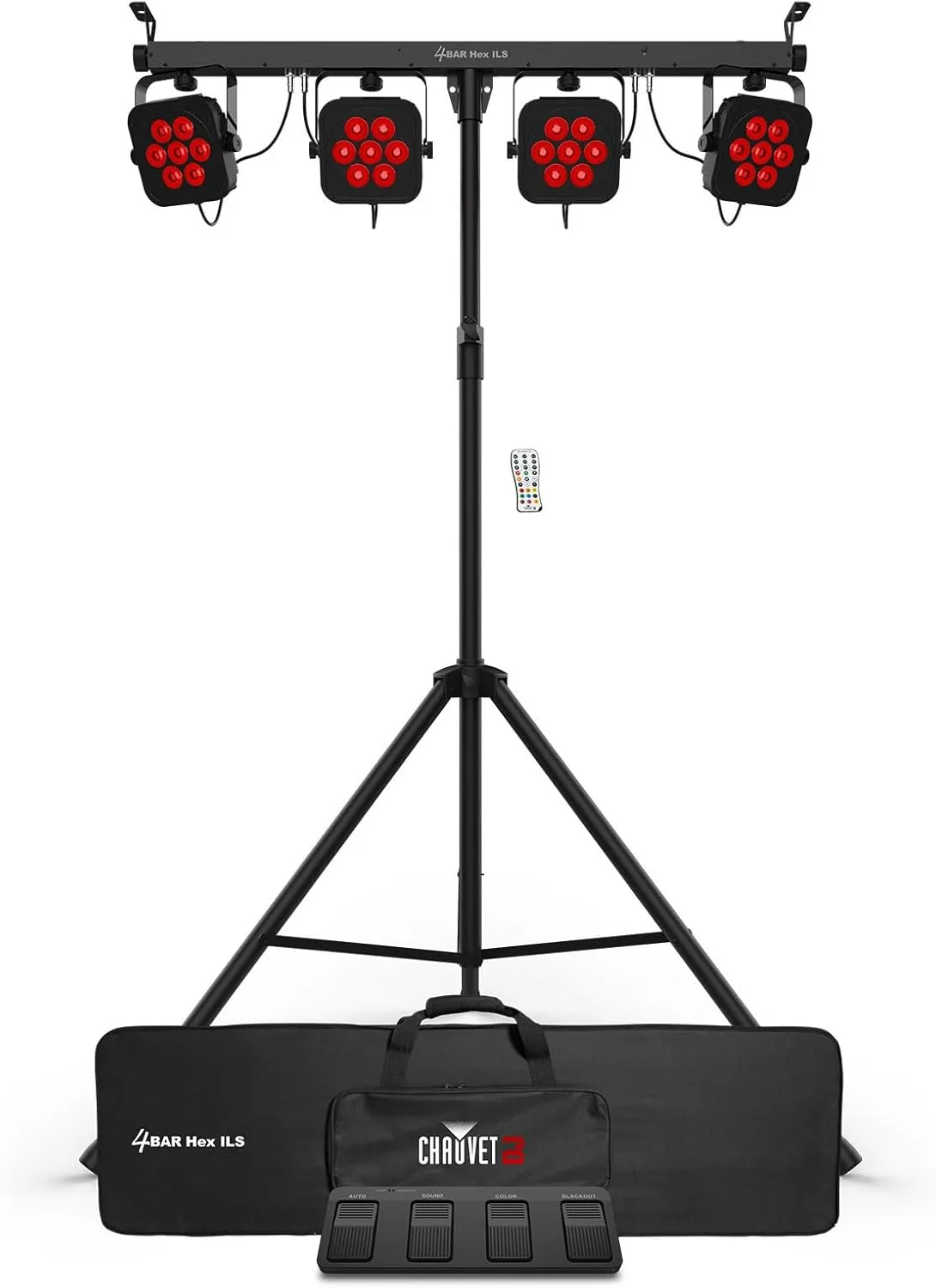

- 4Bar Hex ILSPower cordCarrying bagTripodTripod Carry bagWireless FootswitchQuick Reference GuideComplete wash lighting solution fitted with high-intensity, hex-color (RGBAW UV) LEDsILS compatibility for use in the ILS ecosystemD-Fi USB compatibility for wireless Master/Slave or DMX control
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology. Update the unit's software from the built-in USB port. Out of the box wireless control with included footswitch or optional IRC-6 controller. Easily set up and tear down in minutes with the included tripod stand and carrying bags
- Achieve total room or stage coverage with 4 individually adjustable heads. Increase mounting options by safely mounting to truss using built-in bolts. DMX Channels:6, 8, or 27. DMX Connectors:3-pin XLR. Max Unobstructed Distance:(foot switch): 100 ft (30.5 m). Light Source:42 LEDs (hex color RGBAW UV) 5.1 W, (2 A), 50,000 hours life expectancy. Strobe Rate:0 to 20 Hz. Beam Angle:16 degree
- Field Angle:25 degree. Illuminance:1570 lux @ 2 m (per pod). Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging). Power and Current: 97 W, 1.3 A @ 120 V, 60 Hz. 94 W, 0.7 A @ 230 V, 50 Hz. Weight:12.2 lb (5.5 kg). Size:45.7 x 2 x 12 in (1186 x 50.8 x 305 mm). Approvals:CE, RoHS, UKCA. Footswitch battery: 9 V. Operating Frequency (D-Fi): 2.412 to 2.484 GHz. Operating Frequency (foot switch): 433 MHz
- Stand Height: 7 ft 4 in (2.2 m). Fits Tripod Sizes: 1.5 in (36.80 mm). Bracket Mounting Hole: M10 (1.5 mm pitch). Weight (Controller): 1.2 lb (0.6 kg). Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm). Optional Controllers: IRC-6, ILS Command
Description:4BAR Hex ILS is a complete wash lighting solution fitted with high-intensity hex-color (RGBAW UV) LEDs that can be controlled wirelessly right out of the box using the included footswitch or optional IRC-6 remote. ILS compatibility offers ultimate control flexibility and makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology. A tripod and carry bag are included for effortless setup and quick tear down.
- Product Dimensions : 50.55 x 7.24 x 19.45 inches; 37 Pounds
- Date First Available : April 3, 2024
- Manufacturer : Chauvet DJ
- Country of Origin : China
